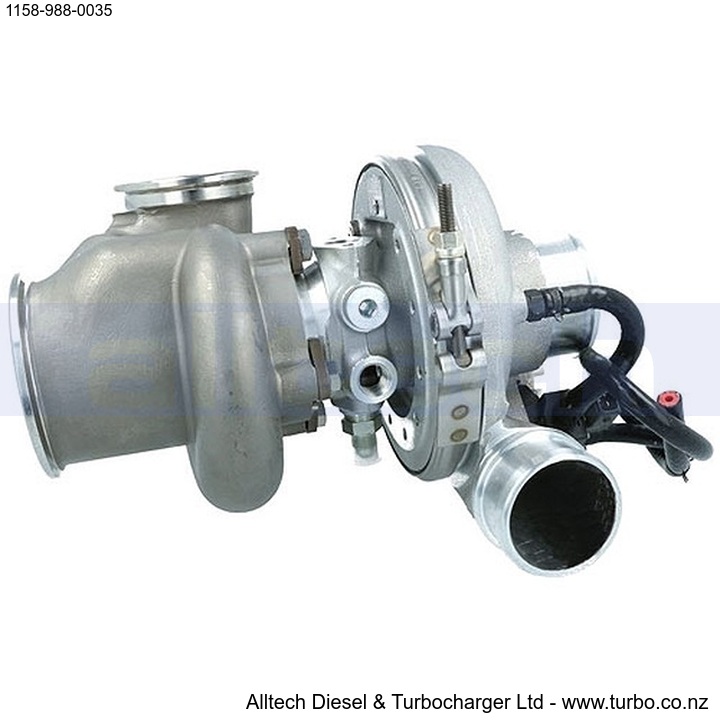

Borgwarner EFR 6758-F (v) Turbocharger .85A/r V/Band

Product Code: 1158-988-0035
Manufacturer: BorgWarner
Product Group: Performance Parts
Packaged Weight: 8.30kgs
Cubic Size: .0550m3
Retail: NZD$4,605.75 incl GSTIn stock

Overview:
Turbo Family: EFR 6758-F (v)
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Inducer: 54mm
Compressor Exducer: 67mm
Max Flow Rate: 53 lb/min
Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
Turbine Inducer: 58mm
Turbine Exducer: 52mm
Turbine type: Low Inertia Gamma-Ti
Compressor A/R: .46
Turbine A/R: .85
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water
Flange Details:
Compressor Inlet Flange: 2.5" Hose
Compressor Outlet Flange: 2.0" Hose
Turbine Inlet Flange: V/Band
Turbine Outlet Flange: V/Band
Wastegate:
Wastegate Type: Internal, Supplied with a Medium Boost Actuator
Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Expected Power Output: 250 to 500 HP : 185 to 370 kw
Additional Comments:

Dual Row Ceramic Ball Bearings – lowest friction and fastest spool/response, most extreme durability, built-in 2mm oil restrictor
Watercooled Center Section – watercooling is recommended, 14mm banjo bolts
Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
Boost Control Solenoid Valve Integrated to Compressor Housing
Integrated Speed Sensor mounting provisions

Optional Accessories:
Turbo Speed Sensor Kit 179430
Boost Control Solenoid Valve (BCSV) Plug Kit 1-287-013-003
Turbine Outlet Flange 95391
Turbine Outlet Clamp 446397-5364
Oil Drain Flange 95005
