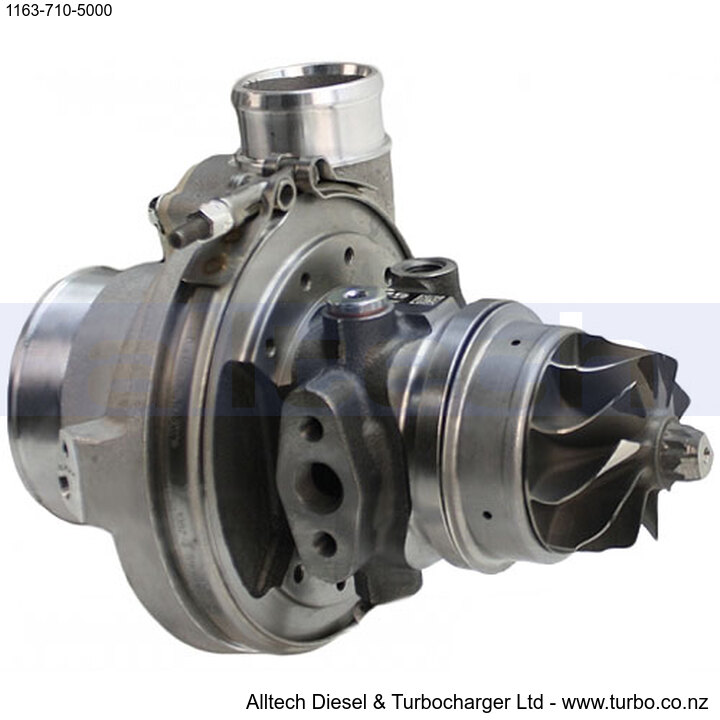

Borgwarner EFR 7163 Super-Core Aluminium
| Product Code: | 1163-710-5000 |
| Manufacturer: | BorgWarner |
| Product Group: | Performance Parts |
Retail: NZD$3,456.90 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | EFR 7163 Super Core Aluminium |
| Compressor Type: | Forged-Milled Wheel (FMW) Extended Tip |
| Compressor Inducer: | 57mm |
| Compressor Exducer: | 71mm |
| Max Flow Rate: | 60 lb/min |
| Built-in BOV: | All EFR compressor housings incorporate an integrated BOV. |
| Turbine Inducer: | 56mm |
| Turbine Exducer: | 63mm |
| Turbine type: | Low Inertia Gamma-Ti |
| Compressor A/R: | .50 |
| Bearing Type: | Ball Bearing |
| Bearing Cooling: | Oil & Water |
| Flange Details: | |
|---|---|
| Compressor Inlet Flange: | 3.5" Hose |
| Compressor Outlet Flange: | 2.0" Hose |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Small frame |
| Intended Application: | Low to Medium power |
| Expected Power Output: | 250 to 500 HP : 185 to 370 kw |
| Additional Comments: | |
|---|---|
| Dual Row Ceramic Ball Bearings – lowest friction and fastest spool/response, most extreme durability, built-in 2mm oil restrictor Watercooled Center Section – watercooling is recommended, 14mm banjo bolts Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage Boost Control Solenoid Valve Integrated to Compressor Housing Integrated Speed Sensor mounting provisions |
| Optional Accessories: | |
|---|---|
| EFR7163 Turbine housing .85A/r T2SE IWG | 1163-100-8000 |
EFR7163 Turbine housing .85A/r V/Band IWG | 1163-100-8001 |
EFR7163 Turbine housing .80A/r T4DE IWG | 1163-100-8002 |
EFR7163 Turbine housing .85A/r V/Band EWG | 1163-100-8003 |
Turbo Speed Sensor Kit | 179430 |
Turbine Outlet Flange | 95391 |
Turbine Outlet Clamp | 446397-5364 |
Oil Drain Flange | 95005 |
