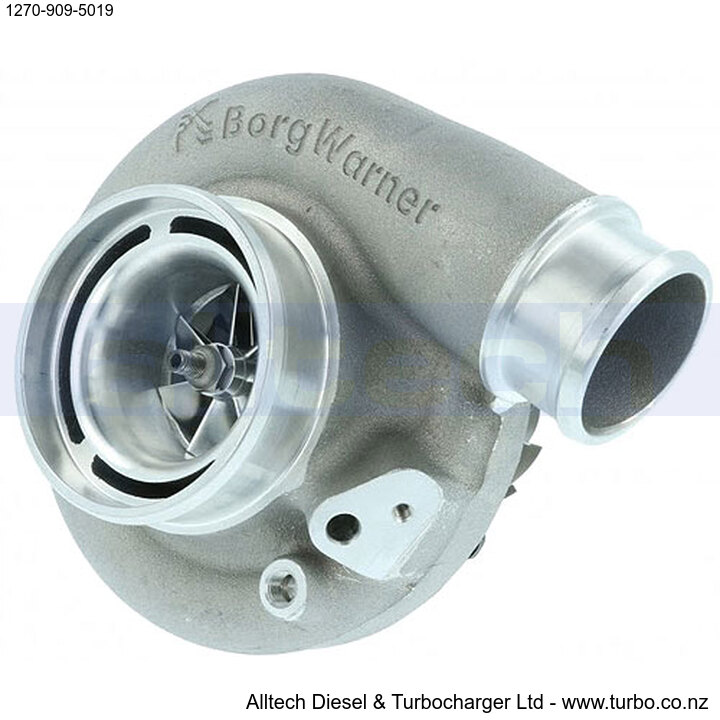

BorgWarner S200SX-E Super-Core "S252"
| Product Code: | 1270-909-5019 |
| Manufacturer: | BorgWarner |
| Product Group: | Performance Parts |
| Cubic Size: | .0450m3 |
Retail: NZD$1,638.75 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | S200SX-E Super-Core Iron "S252SX-E" |
| Compressor Type: | Forged-Milled Wheel (FMW) Extended Tip |
| Compressor Inducer: | 52.17mm |
| Compressor Exducer: | 69.60mm |
| Turbine Inducer: | 69.56mm |
| Turbine Exducer: | 61.43mm |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil |
| Flange Details: | |
|---|---|
| Compressor Inlet Flange: | 3.5" Hose |
| Compressor Outlet Flange: | 2.0" Hose |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Small frame |
| Intended Application: | Medium power |
| Expected Power Output: | 300 to 650 HP : 220 to 485 kw |
| Additional Comments: | |
|---|---|
| • Integrated speed sensor port • Forged milled compressor wheel • Pre-machined boost port • Optimized compressor stage aerodynamics |
| Optional Accessories: | |
|---|---|
| S200SX Turbine housing .83A/r T4DE | 177191 |
S200SX Turbine housing 1.00A/r T4DE | 177193 |
S200SX Turbine housing 1.09A/r T4DE | 177196 |
S200SX Turbine housing 1.15A/r T4DE | 177192 |
S200SX Turbine housing 1.22A/r T4DE | 177194 |
S200SX Turbine housing 1.27A/r T4DE | 178331 |
Turbo Speed Sensor Kit | 179430 |
Turbine Outlet Flange & Clamp kit | S300 Marmon Kit |
