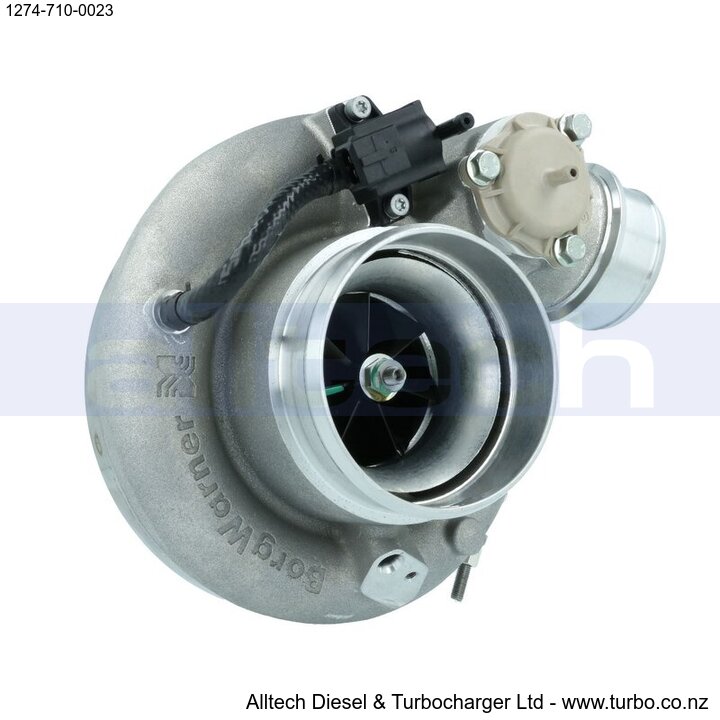

BorgWarner EFR 9274 Super-Core Iron
| Product Code: | 1274-710-0023 |
| Manufacturer: | BorgWarner |
| Product Group: | Performance Parts |
Retail: NZD$7,348.91 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | EFR 9274 Super-Core Iron "Black Edition" |
| Compressor Type: | Forged-Milled Wheel (FMW) Extended Tip |
| Compressor Inducer: | 72mm |
| Compressor Exducer: | 91mm |
| Max Flow Rate: | 106 lb/min |
| Built-in BOV: | All EFR compressor housings incorporate an integrated BOV. |
| Turbine Inducer: | 74mm |
| Turbine Exducer: | 65mm |
| Compressor A/R: | .57 |
| Bearing Type: | Ball Bearing |
| Bearing Cooling: | Oil & Water |
| Flange Details: | |
|---|---|
| Compressor Inlet Flange: | 4.0" Hose |
| Compressor Outlet Flange: | 2.5" Hose with integrated V/band option |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Large frame |
| Intended Application: | Medium to High power |
| Expected Power Output: | 600 to 1050 HP : 445 to 785 kw |
| Additional Comments: | |
|---|---|
| Dual Row Ceramic Ball Bearings – lowest friction and fastest spool/response, most extreme durability, built-in 2mm oil restrictor Watercooled Center Section – watercooling is recommended, 14mm banjo bolts Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage Boost Control Solenoid Valve Integrated to Compressor Housing Integrated Speed Sensor mounting provisions |
| Optional Accessories: | |
|---|---|
| EFR8374/8474/9174/9274 Turbine housing .83A/r T3SE IWG | 1274-100-8000 |
EFR8374/8474/9174/9274 Turbine housing .92A/r T4DE IWG | 1274-100-8001 |
EFR8374/8474/9174/9274 Turbine housing 1.05A/r T4DE EWG | 1274-100-8002 |
EFR8374/8474/9174/9274 Turbine housing 1.45A/r T4DE EWG | 1274-100-8003 |
Turbo Speed Sensor Kit | 179430 |
Turbine Outlet Flange | 95391 |
Turbine Outlet Clamp | 446397-5364 |
Oil Drain Flange | 95005 |
