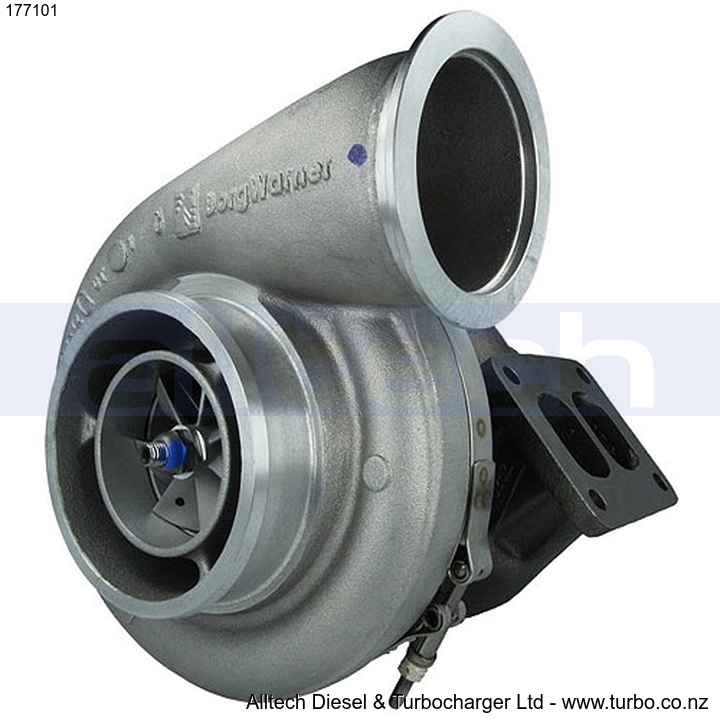

BorgWarner S400SX Turbocharger 1.10A/r T4DE " S475"
| Product Code: | 177101 |
| Manufacturer: | BorgWarner |
| Product Group: | Performance Parts |
| Packaged Weight: | 18.50kgs |
| Cubic Size: | .0550m3 |
Retail: NZD$2,305.75 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | S400SX |
| Compressor Inducer: | 74.56mm |
| Compressor Exducer: | 100.17mm |
| Turbine Inducer: | 83.74mm |
| Turbine Exducer: | 74.29mm |
| Turbine A/R: | 1.12 |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil |
| Flange Details: | |
|---|---|
| Turbine Inlet Flange: | T4 Divided Entry |
| Turbine Outlet Flange: | 4.62"V/Band, 1/2 Marmon |
| Compressor Inlet Flange: | 5.00" Hose |
| Compressor Outlet Flange: | 4.21" V/Band |
| Wastegate: | |
|---|---|
| Wastegate Type: | External |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Large frame |
| Intended Application: | Medium - High Power |
| Suits Engine Size: | 3.0 to 5.5 Litre |
| Optional Accessories: | |
|---|---|
| Turbine Inlet Gasket | TGG03 |
Turbine Inlet Flange | 407294-FLANGE |
Compressor Outlet Flange | 95130 |
Compressor Outlet Flange Clamp | VT10425 |
Oil Drain Flange | 95006 |
Turbine Outlet Flange | 95384 | Turbine Outlet Flange Clamp | VT10481 |
