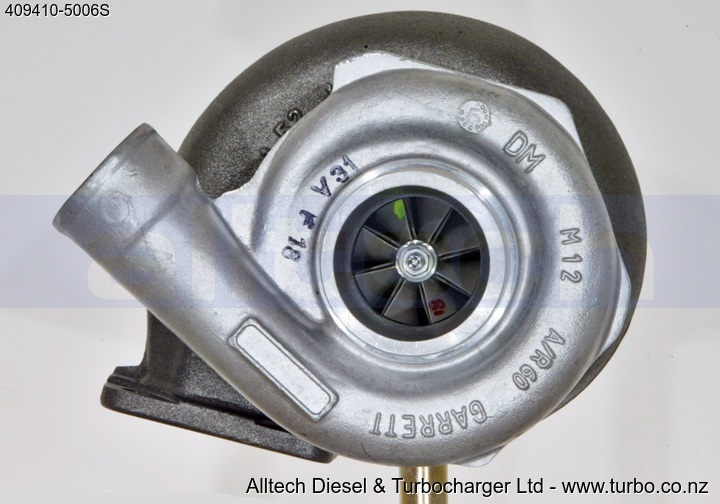

Genuine Garrett T04B91 Turbocharger 1.52 A/R CATERPILLAR
| Product Code: | 409410-5006S |
| Manufacturer: | Garrett |
| Product Group: | Turbochargers |
| Packaged Weight: | 9.30kgs |
| Cubic Size: | .0200m3 |
Retail: NZD$2,156.25 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | T04B |
| Turbine Inducer: | 74.2mm |
| Turbine Exducer: | 64.6mm |
| Compressor Inducer: | 48mm |
| Compressor Exducer: | 70mm |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil Only |
| Flange Details: | |
|---|---|
| Turbine Inlet Flange: | T4 Split Pulse |
| Turbine Outlet Flange: | Piston Ring |
| Compressor Inlet Flange: | Hose |
| Compressor Outlet Flange: | Hose |
| Wastegate: | |
|---|---|
| Wastegate Type: | None |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Medium frame |
| Intended Application: | Industrial |
