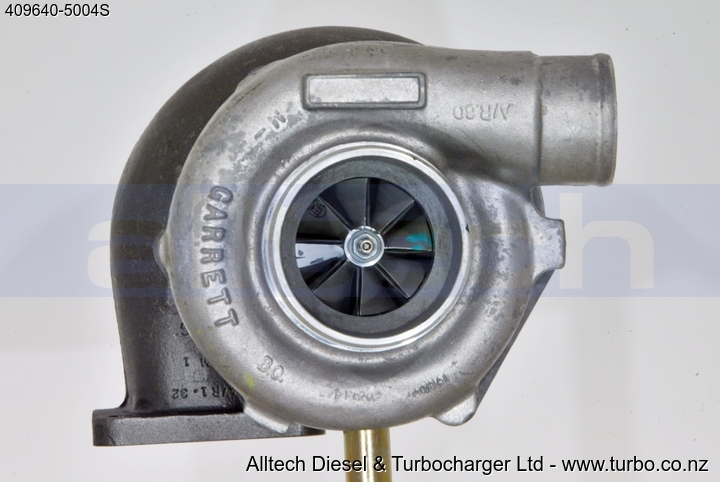

Genuine Garrett T04B19 Turbocharger J.I.CASE
| Product Code: | 409640-5004S |
| Manufacturer: | Garrett |
| Product Group: | Turbochargers |
| Packaged Weight: | 8.60kgs |
| Cubic Size: | .0132m3 |
Retail: NZD$1,725.00 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | T04B |
| Turbine Inducer: | 74.2mm |
| Turbine Exducer: | 64.6mm |
| Compressor Inducer: | 54.2mm |
| Compressor Exducer: | 70mm |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil Only |
| Flange Details: | |
|---|---|
| Turbine Inlet Flange: | T4 Split Pulse |
| Turbine Outlet Flange: | Piston Ring |
| Compressor Inlet Flange: | Hose |
| Compressor Outlet Flange: | Hose |
| Wastegate: | |
|---|---|
| Wastegate Type: | None |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Medium frame |
| Intended Application: | Industrial |
| Technical Specifications: | |||
|---|---|---|---|
| Part Number: | 409640-0004 | ||
| Specification: | |||
| Base Model: | |||
| Model: | T04B19 | ||
| Application/Engine: | |||
| Substitutes To: | |||
| OEM Number: | |||
| Customer: | CASE | ||
| Kit: | |||
| Compressor End Details | Turbine End Details | ||
| Housing Part No: | 408274-0224 | Housing Part No: | 407263-0035 |
| Housing A/R: | 0.6 | Housing A/R: | 1.32 |
| Housing Feature: | Housing Feature: | ||
| Wheel Part No: | 409179-0024 | Wheel Part No: | 446905-0007 |
| Exducer Diameter: | 70.0 | Exducer Diameter: | 64.6 |
| Inducer Diameter: | 54.2 | Inducer Diameter: | 74.2 |
| Trim: | U | Trim: | 76 |
| Wheel Type: | RADIAL | Wheel Type: | 3RD GEN |
| Blade Count: | 8/8 | Blade Count: | 11 |
| CHRA Part No: | 408105-0186 | ||
| Backplate Part No: | 408045-0034 | ||
| Bearing Housing Part No: | 430027-0021 | ||
| Turbine Housing Volute: | TWIN FLOW | ||
| Turbine Housing cm2: | |||
| Other Info: | |||
