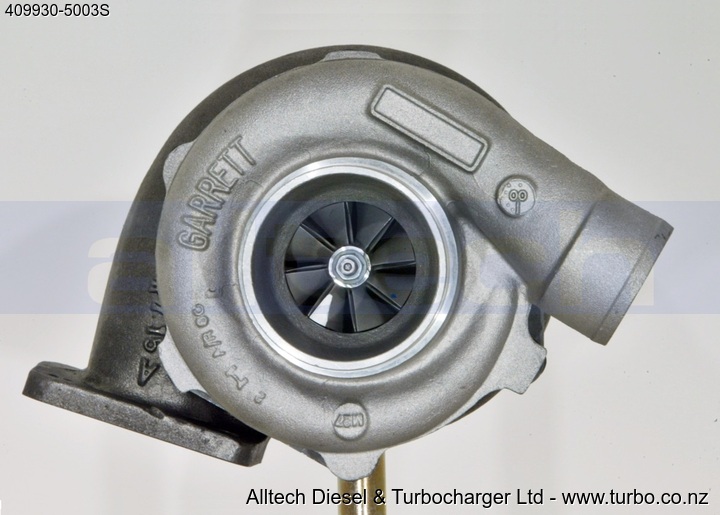

Genuine Garrett T04B31 Turbocharger JOHN DEERE
| Product Code: | 409930-5003S |
| Manufacturer: | Garrett |
| Product Group: | Turbochargers |
| Packaged Weight: | 8.00kgs |
| Cubic Size: | .0138m3 |
Retail: NZD$1,023.50 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | T04B |
| Turbine Inducer: | 74.2mm |
| Turbine Exducer: | 58.3mm |
| Compressor Inducer: | 49.5mm |
| Compressor Exducer: | 70mm |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil Only |
| Flange Details: | |
|---|---|
| Turbine Inlet Flange: | T4 Split Pulse |
| Turbine Outlet Flange: | Piston Ring |
| Compressor Inlet Flange: | Hose |
| Compressor Outlet Flange: | Hose |
| Wastegate: | |
|---|---|
| Wastegate Type: | None |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Medium frame |
| Intended Application: | Industrial |
| Technical Specifications: | |||
|---|---|---|---|
| Part Number: | 409930-0003 | ||
| Specification: | |||
| Base Model: | |||
| Model: | T04B31 | ||
| Application/Engine: | |||
| Substitutes To: | |||
| OEM Number: | |||
| Customer: | DEERE | ||
| Kit: | |||
| Compressor End Details | Turbine End Details | ||
| Housing Part No: | 408274-0022 | Housing Part No: | 407316-0021 |
| Housing A/R: | 0.6 | Housing A/R: | 1.15 |
| Housing Feature: | Housing Feature: | ||
| Wheel Part No: | 409179-0022 | Wheel Part No: | 451309-0002 |
| Exducer Diameter: | 70.0 | Exducer Diameter: | 58.3 |
| Inducer Diameter: | 49.5 | Inducer Diameter: | 74.2 |
| Trim: | M | Trim: | 62 |
| Wheel Type: | RADIAL | Wheel Type: | STAR |
| Blade Count: | 8/8 | Blade Count: | 11 |
| CHRA Part No: | 408105-0047 | ||
| Backplate Part No: | 408045-0034 | ||
| Bearing Housing Part No: | 430027-0021 | ||
| Turbine Housing Volute: | TWIN FLOW | ||
| Turbine Housing cm2: | |||
| Other Info: | |||
