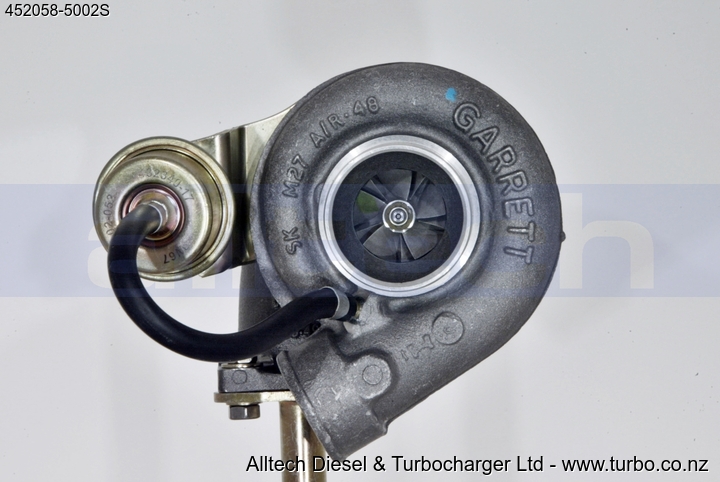

Genuine Garrett TB2556 Turbocharger PERKINS
| Product Code: | 452058-5002S |
| Manufacturer: | Garrett |
| Product Group: | Turbochargers |
| Packaged Weight: | 5.50kgs |
| Cubic Size: | .0250m3 |
Retail: NZD$1,920.50 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | TB25 |
| Turbine Inducer: | 53mm |
| Turbine Exducer: | 41.7mm |
| Compressor Inducer: | 38.2mm |
| Compressor Exducer: | 54mm |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil Only |
| Flange Details: | |
|---|---|
| Turbine Inlet Flange: | T25 |
| Turbine Outlet Flange: | 3-Bolt |
| Compressor Inlet Flange: | Hose |
| Compressor Outlet Flange: | Hose |
| Wastegate: | |
|---|---|
| Wastegate Type: | Internal (actuator supplied) |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Small frame |
| Intended Application: | Low power |
| Suits Engine Size: | 2.5Lt |
| Expected Power Output: | 98 HP : 73.0785902 kw |
| Technical Specifications: | |||
|---|---|---|---|
| Part Number: | 452058-0002 | ||
| Specification: | |||
| Base Model: | |||
| Model: | TB2556 | ||
| Application/Engine: | |||
| Substitutes To: | |||
| OEM Number: | |||
| Customer: | PERKINS | ||
| Kit: | |||
| Compressor End Details | Turbine End Details | ||
| Housing Part No: | 434288-0005 | Housing Part No: | 413567-0047 |
| Housing A/R: | 0.48 | Housing A/R: | 0.49 |
| Housing Feature: | Housing Feature: | SINGLE BYPASS | |
| Wheel Part No: | 446335-0012 | Wheel Part No: | 435406-0003 |
| Exducer Diameter: | 54.0 | Exducer Diameter: | 41.7 |
| Inducer Diameter: | 38.2 | Inducer Diameter: | 53.0 |
| Trim: | 50*2 | Trim: | 62 |
| Wheel Type: | BCCW15 | Wheel Type: | DESIGN 4 |
| Blade Count: | 5/5 | Blade Count: | 10 |
| CHRA Part No: | 443854-0129 | ||
| Backplate Part No: | 430735-0001 | ||
| Bearing Housing Part No: | 435349-0016 | ||
| Turbine Housing Volute: | OPEN VOLUTE | ||
| Turbine Housing cm2: | |||
| Other Info: | |||
