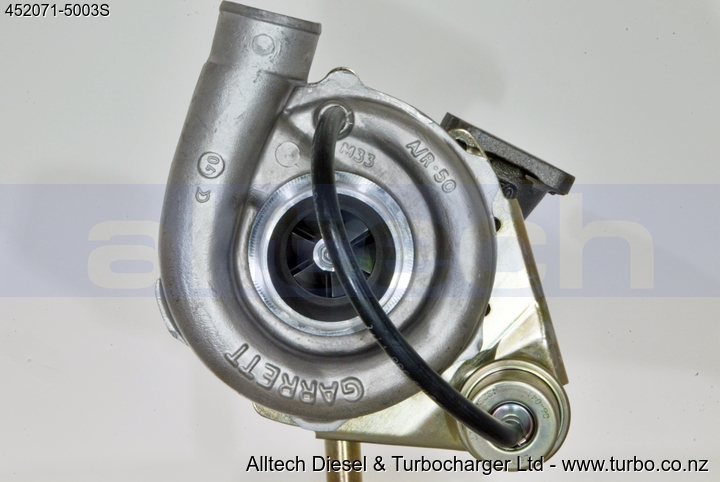

Genuine Garrett TBP412 Turbocharger PERKINS
| Product Code: | 452071-5003S |
| Manufacturer: | Garrett |
| Product Group: | Turbochargers |
| Packaged Weight: | 10.90kgs |
| Cubic Size: | .0300m3 |
Retail: NZD$1,098.25 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | TBP41 |
| Turbine Inducer: | 74.2mm |
| Turbine Exducer: | 52.6mm |
| Compressor Inducer: | 45.0mm |
| Compressor Exducer: | 74.9mm |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil Only |
| Flange Details: | |
|---|---|
| Turbine Inlet Flange: | T3 Split Pulse |
| Turbine Outlet Flange: | 6-Bolt |
| Compressor Inlet Flange: | Hose |
| Compressor Outlet Flange: | Hose |
| Wastegate: | |
|---|---|
| Wastegate Type: | Internal (actuator supplied) |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Medium frame |
| Intended Application: | Medium power |
| Technical Specifications: | |||
|---|---|---|---|
| Part Number: | 452071-0003 | ||
| Specification: | |||
| Base Model: | |||
| Model: | TBP412 | ||
| Application/Engine: | |||
| Substitutes To: | |||
| OEM Number: | |||
| Customer: | PERKINS | ||
| Kit: | |||
| Compressor End Details | Turbine End Details | ||
| Housing Part No: | 409589-0244 | Housing Part No: | 413889-0002 |
| Housing A/R: | 0.5 | Housing A/R: | 0.7 |
| Housing Feature: | Housing Feature: | SINGLE BYPASS | |
| Wheel Part No: | 442293-0002 | Wheel Part No: | 446905-0006 |
| Exducer Diameter: | 74.9 | Exducer Diameter: | 52.6 |
| Inducer Diameter: | 45.0 | Inducer Diameter: | 74.2 |
| Trim: | 36*50 | Trim: | 50 |
| Wheel Type: | BCCW6 | Wheel Type: | 3RD GEN |
| Blade Count: | 6/6 | Blade Count: | 11 |
| CHRA Part No: | 447450-0038 | ||
| Backplate Part No: | 408045-0031 | ||
| Bearing Housing Part No: | 430027-0022 | ||
| Turbine Housing Volute: | TWIN FLOW | ||
| Turbine Housing cm2: | |||
| Other Info: | |||
