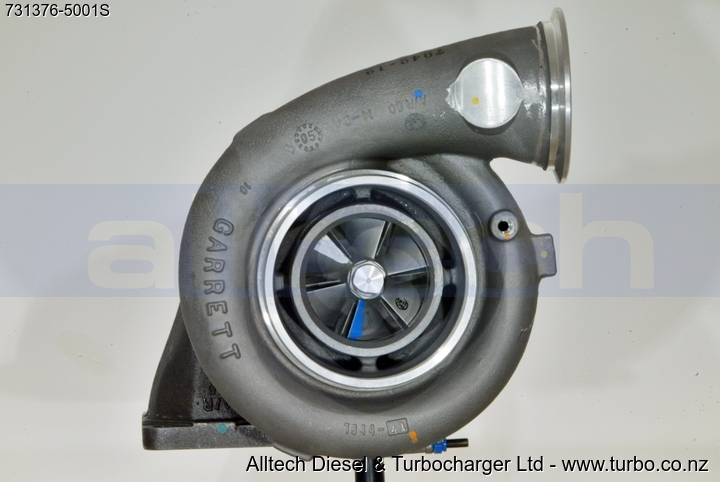

Genuine Garrett GTA4294 Journal-Bearing Turbocharger
| Product Code: | 731376-5001S |
| Manufacturer: | Garrett Performance |
| Product Group: | Performance Parts |
| Packaged Weight: | 19.50kgs |
Retail: NZD$1,629.55 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | GT42 |
| Turbine Inducer: | 82.0mm |
| Compressor Inducer: | 74.3mm |
| Compressor Exducer: | 94.0mm |
| Compressor A/R: | 0.60 |
| Turbine A/R: | 1.15 |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil Only |
| Flange Details: | |
|---|---|
| Turbine Inlet Flange: | T4 |
| Turbine Outlet Flange: | V-Band |
| Compressor Inlet Flange: | Hose |
| Compressor Outlet Flange: | Hose |
| Wastegate: | |
|---|---|
| Wastegate Type: | External |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Large frame |
| Intended Application: | High power |
| Suits Engine Size: | 2.0 to 8 Litre |
| Expected Power Output: | 500 to 1000 HP : 373 to 746 kw |
| Where Used: | |
|---|---|
| Similar Turbochargers: | 731376-0002 |
| Additional Comments: | |
|---|---|
| The unit includes a dual port shrouded compressor cover that helps increase the turbo's resistance to surge. The core is interchangable with the GT4294R ball bearing CHRA. |
