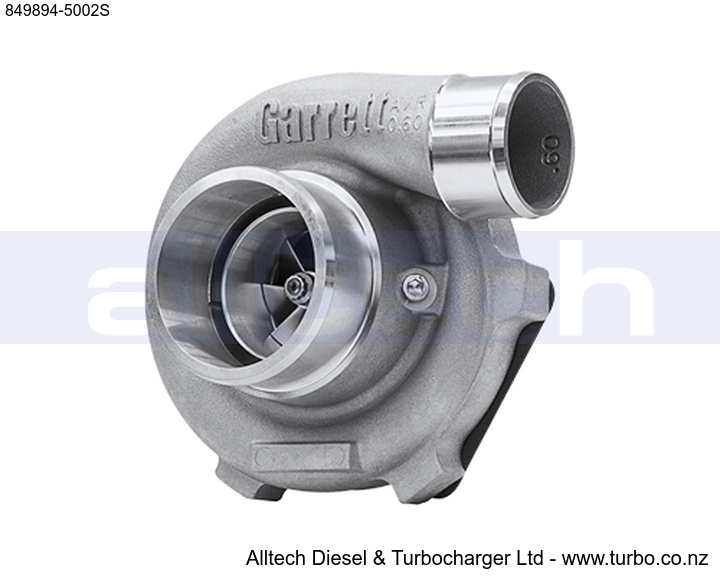

Genuine Garrett GTX2867R Gen2 Ball-Bearing Super Core Assembly
| Product Code: | 849894-5002S |
| Manufacturer: | Garrett Performance |
| Product Group: | Performance Parts |
| Cubic Size: | .0200m3 |
Retail: NZD$1,500.75 incl GSTIn stock
| Overview: | |
|---|---|
| Turbo Family: | GTX2867R GEN 2 |
| Compressor Inducer: | 49.69mm |
| Compressor Exducer: | 67mm |
| Compressor Spec: | 58T |
| Turbine Inducer: | 54mm |
| Turbine Exducer: | 47mm |
| Turbine Spec: | 76T |
| Compressor A/R: | .60 |
| Bearing Type: | Ball Bearing |
| Bearing Cooling: | Oil & Water |
| Flange Details: | |
|---|---|
| Compressor Inlet Flange: | 3.0" Hose |
| Compressor Outlet Flange: | 2.0" Hose |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Small frame |
| Intended Application: | Low to Medium power |
| Suits Engine Size: | 1.4 to 2.5 Litre |
| Expected Power Output: | 200 to 475 HP : 149 to 354 kw |
| Additional Comments: | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Features: GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE NEW FULLY MACHINED SPEED SENSOR PORT. SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE HSG) Honeywell Garrett, is excited to announce the release of our Gen II GTX2860R Series turbochargers. The GTX Gen II line received a major compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version. GTX Gen II compressor wheels were designed using proprietary Honeywell computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger. Each GTX Gen II turbocharger has the ability to create more air mass flow, offering enthusiasts a wider range of power output when tuning the vehicle. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion. The Gen II GTX Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud. We also added a brand new compressor housing featuring a high-flowing design matched perfectly for the new compressor wheel upgrade. Gen II compressor housings are not interchangeable with Gen I compressor wheels; however, all Gen II turbochargers are outline interchangeable with the equivalent GT and GTX Gen I products making a turbo swap easy to perform using all existing piping. The new compressor housings are equipped with a fully machined speed sensor port that accepts the Honeywell Garrett speed sensor (Sold separately). This feature allows tuners to understand existing operating conditions, which is important when fine tuning a turbocharger to its most efficient operating conditions. The speed sensor port comes plugged from the factory and can be removed using a 5mm allen key when ready to install a speed sensor kit. All Gen II GTX series turbochargers are compatible with existing GT and GTX turbine housings kits. Gen II turbochargers are only offered through Honeywell Garrett authorized distribution centers |
|||||||||||||||||||||||||||
| Optional Accessories: | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GT28R Turbine housing .57A/r VB EWG | 827690-0001 |
GT28R Turbine housing .72A/r VB EWG | 827690-0002 |
GT28R Turbine housing .64A/r T2SE IWG | 827690-0003 |
GT28R Turbine housing .86A/r T2SE IWG | 827690-0004 |
Turbo Speed Sensor Kit - Street | 781328-0001 |
Turbo Speed Sensor Kit - Pro | 781328-0002 |
Turbine Inlet Flange V/Band | 95372 |
Turbine Inlet Flange T2SE | 95038 |
Turbine Outlet Flange V/band | 95364 |
Turbine inlet V/band Clamp | 826466-0002 |
Turbine Outlet V/band Clamp | 826466-0001 |
Oil Drain Flange | 95005 |
